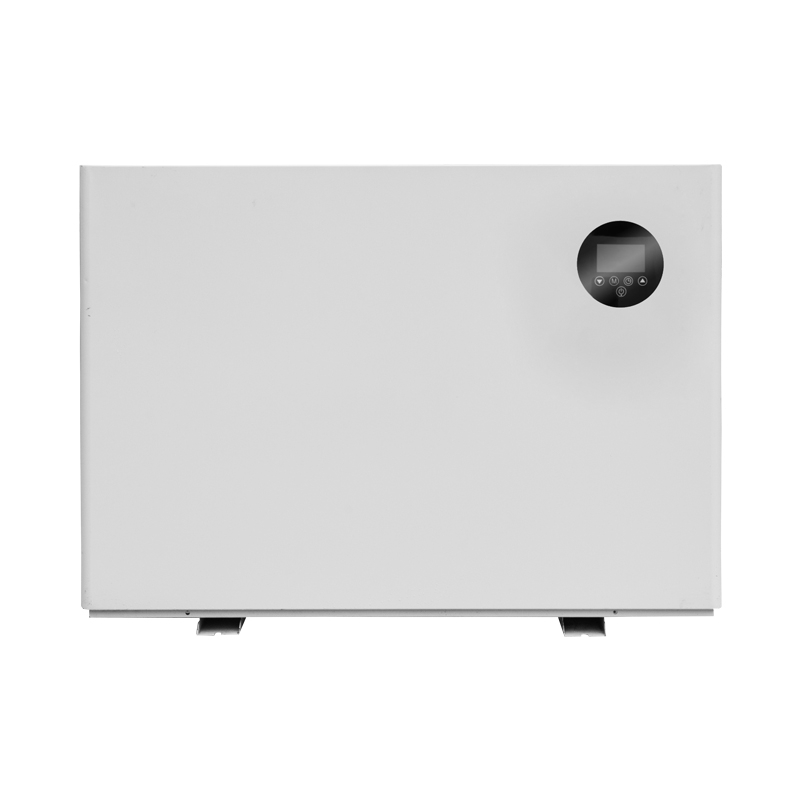

CGY010V3 CGY015V3
SPRSUN
| Model | | CGY010V3 | CGY015V3 | |||||
| Power Supply / Refrigerant | V/Hz/Ph | 220-240/50/1 - R32 | ||||||
| Max. Heating Capacity (1) | kW | 4.5 | 6.5 | |||||
| C.O.P (1) | W/W | 7.49 | 7.42 | |||||
| Heating Capacity Min./Max.(1) | kW | 1.40 | / | 4.5 | 2.02 | / | 6.5 | |
| Heating Power Input Min./Max.(1) | W | 85 | / | 601 | 125 | / | 876 | |
| C.O.P Min./Max. (1) | W/W | 7.49 | / | 16.33 | 7.42 | / | 16.18 | |
| Max. Heating Capacity (2) | kW | 3.2 | 4.7 | |||||
| C.O.P (2) | W/W | 5.21 | 5.16 | |||||
| Heating Capacity Min./Max.(2) | kW | 1.04 | / | 3.24 | 1.50 | / | 4.68 | |
| Heating power input Min./Max.(2) | W | 115 | / | 622 | 168 | / | 908 | |
| C.O.P Min./Max. (2) | W/W | 5.21 | / | 8.98 | 5.16 | / | 8.90 | |
| Max. Cooling Capacity (3) | kW | 2.5 | 3.6 | |||||
| E.E.R (3) | W/W | 3.38 | 3.35 | |||||
| Cooling Capacity Min./Max.(3) | kW | 1.14 | / | 2.48 | 1.64 | / | 3.58 | |
| Cooling Power Input Min./Max.(3) | W | 224 | / | 731 | 327 | / | 1067 | |
| E.E.R Min./Max. (3) | W/W | 3.38 | / | 5.08 | 3.35 | / | 5.03 | |
| Rated Current | A | 2.9 | 4.2 | |||||
| Max Current | A | 4.2 | 6.1 | |||||
| Max Power Input | kW | 0.85 | 1.24 | |||||
| Compressor | Type - Quantity/System | | Twin Rotary - 1 | Twin Rotary - 1 | ||||
| Fan | Quantity | | 1 | 1 | ||||
| Airflow | m3/h | 1200 | 1500 | |||||
| Rated power | W | 30 | 33 | |||||
| Water Side Heat Exchanger | Type | | Titanium Tube in PVC | |||||
| Water Pressure Drop | kPa | 7 | 8 | |||||
| Piping Connection | mm | φ50 | ||||||
| Allowable Water Flow | Min./Rated./Max. | L/S | 0.27 | 0.43 | 0.54 | 0.39 | 0.62 | 0.78 |
| Noise Level | | dB(A) | 40 | 41 | ||||
| Net Dimension(L×D×H) | mm | 930*380*670 | 930*380*670 | |||||
| Net Weight | Kg | 42 | 48 | |||||
| Note: (1) Performance Condition: Air 27℃/Water 28℃/Humidity 80%; | ||||||||
| (2) Performance Condition: Air 15℃/Water 28℃/Humidity 70%; | ||||||||
| (3) Performance condition: Air 35℃/Water 28℃/Humidity 64% | ||||||||
With COP as high as 16.39, the DC inverter pool heat pumps can change the operating frequency of the rotary compressors and fan motors based on the heating needs, greatly speeding up heating time and thus providing more heat compared with traditional pool heat pumps.
By adopting step-less Panasonic inverter compressors and brushless Nidec DC fans, SPRSUN DC inverter pool heat pumps stay peaceful when heating or cooling your pool water due to its internal noise reduction measures. They provide great silence in your swimming environment, 10dB(A) lower than traditional domestic on/off pool heat pumps.
SPRSUN R32 DC inverter swimming pool heat pumps adopt intelligent touch screen controller for users to easily adjust temperature and manage operation. They also have the Wi-Fi remote control function so that users can use their smartphones to monitor and control the working situation of their inverter pool heat pump anytime and anywhere.
The full inverter pool heat pumps use Titanium Tube-in-Shell Heat Ex-changer with superior chemical resistance so as to avoid corrosion. Titanium is hard, corrosion-resistant, and heat-resistant, making it a great option for handling the high temperatures, water erosion, and the pressure required to run a pool heat exchanger.
When you have a new pool heat pump installed, you do not only consider costs, sizing, efficiency and durability, but also ease of installation. The cuboid design of the domestic inverter pool heat pump, concise and clean, is full of convenience sense, making it one of easiest heat pump pool heaters to install.
